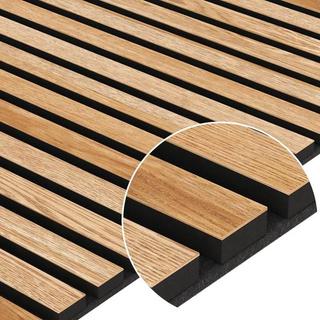

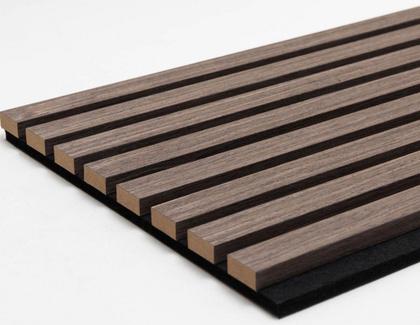

Echo Wooden Acoustics slat panel is produced with high quality, luxury finish and out standing acoustic properties
It can improve the sound quality and elegant feel of any interior space. The wooden slat panel can be used on both walls and ceilings, aided by their ease of installation, when this is combined with the range of colors it creates a multitude of possibilities
| Size (mm) | Thickness | Availability |
|---|---|---|
| 2400 × 1200 | 21mm / 27mm | Standard |
| 2400 × 600 | 21mm / 27mm | Standard |
| 2400 × 400 | 21mm / 27mm | Standard |
| 1200 × 600 | 21mm / 27mm | Standard |
| 1200 × 400 | 21mm / 27mm | Standard |
| 600 × 600 | 21mm / 27mm | Standard |
| 2750 × 600 | 21mm / 27mm | Special — MOQ 100 sheets |
| 3000 × 600 | 21mm / 27mm | Special — MOQ 100 sheets |
Melamine laminate is a hard resin commonly used as an overlay for building materials like MDF, it’s an economic solution for having a wood grain like surface, or any other patterns, it’s cheap but rather durable.
Technical veneer is an economic solution to have a relative natural wood grain compare with melamine and HPL, it can solve the flaws from the natural veneer, such as color tone and scratch, but it can not be as natural as the real wood.

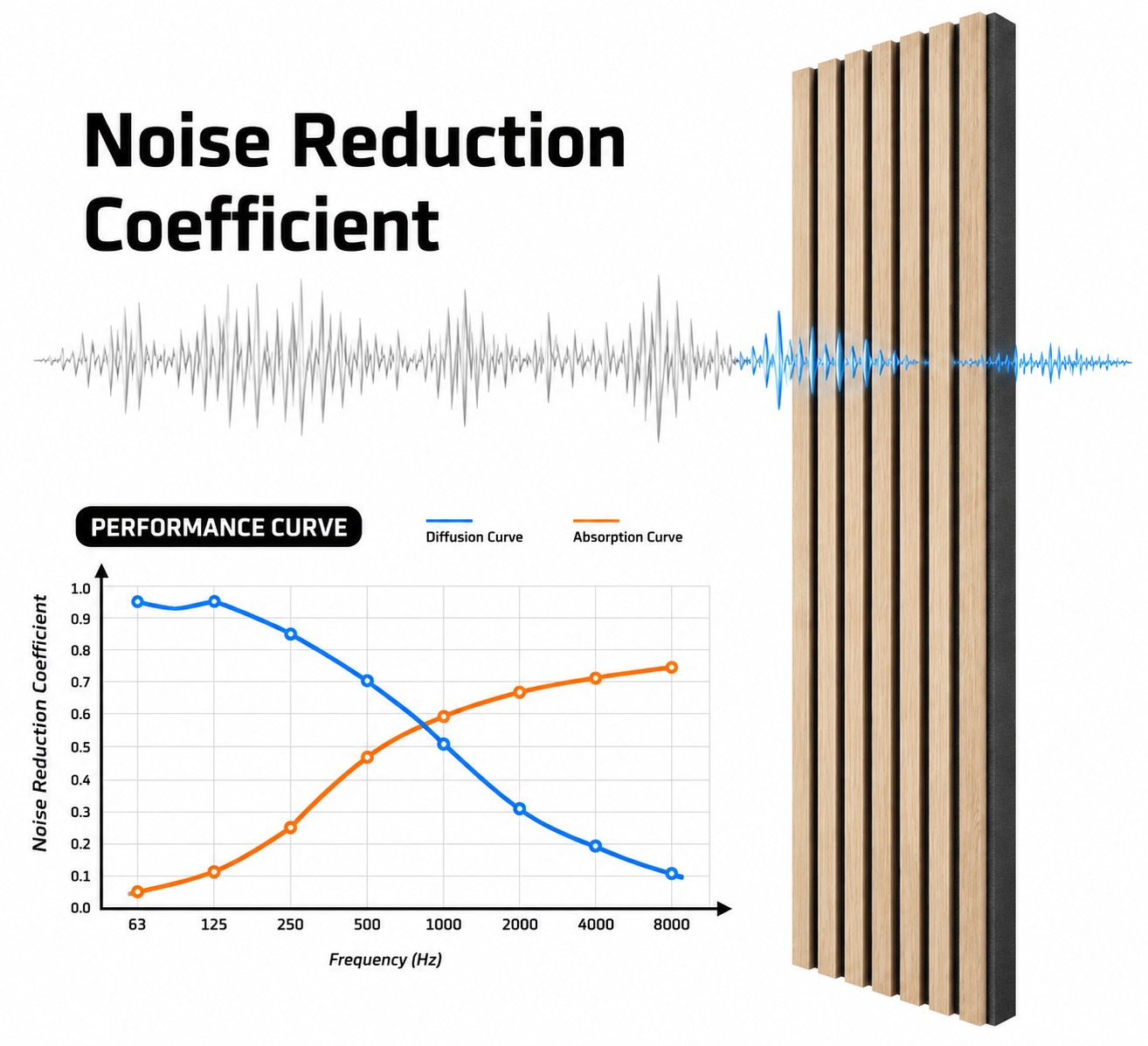

Sound absorption works by reducing the repeated reflection of sound within a room, thereby decreasing reverberation in the enclosed space.
The slatted face diffuses incoming sound while the polyester fibre backing converts the remaining energy into heat, lowering reverberation time without deadening the room entirely.
| Name | Acoustic Slat Wood Panel — Wall & Ceiling |
| Base Material | MDF Board + PET (polyester) Fibre |

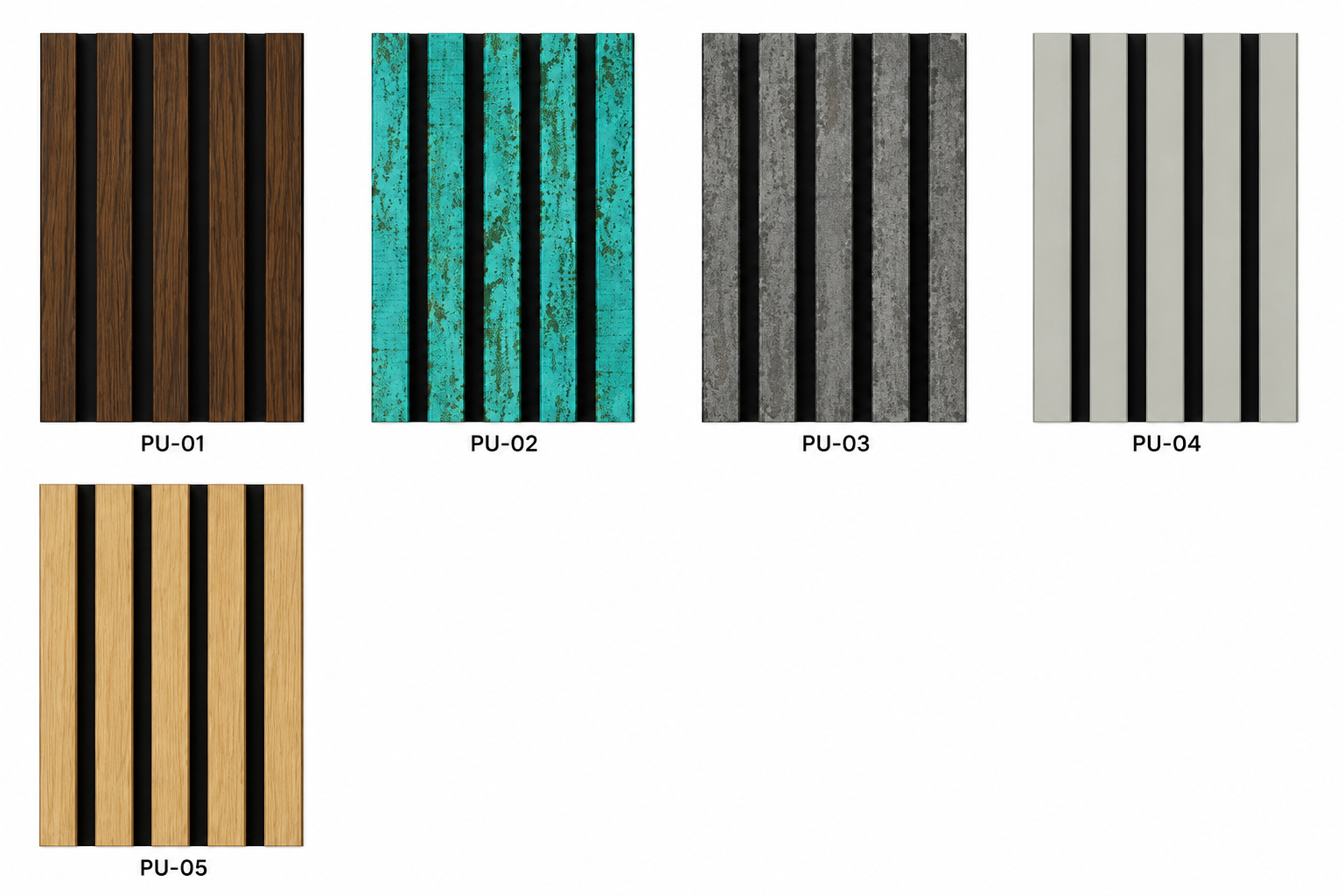

| Finish | Natural Veneer / Technical Veneer / Melamine Paper / PVC / PU Paper |
| Length | 2400 – 3000 mm |
| Width | 285 mm / 305 mm / 605 mm |
| Thickness | 21 mm |
| Fire Rating | B1 — MDF is flame-retardant |
| Water Resistance | MDF is moisture-proof |
| Environmental Grade | E1 · CARB P2 grade fibreboard |
| Installation | Screws or mounting adhesive |
| Cleaning | Vacuum cleaner or dry cloth — do not clean with water |

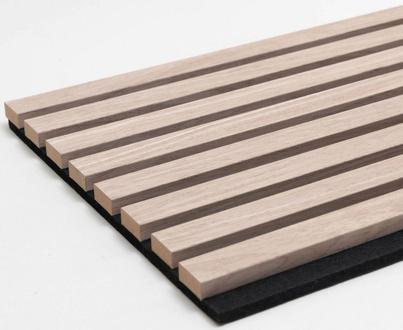

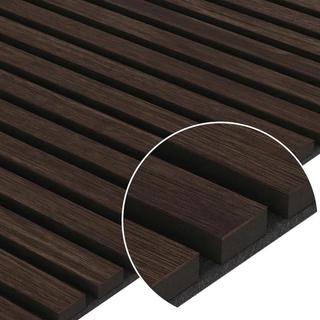

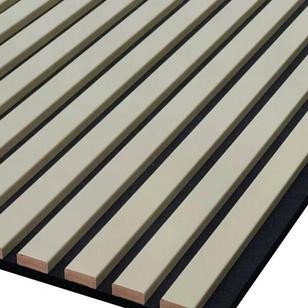

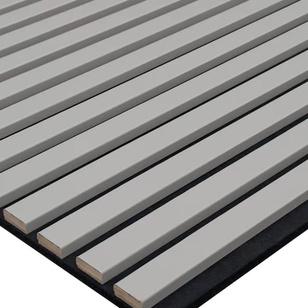

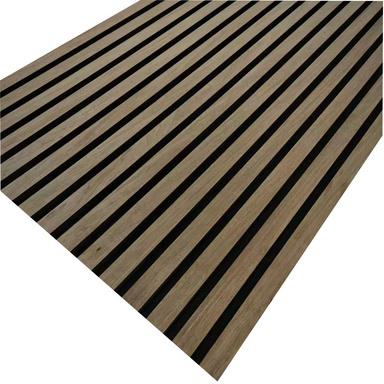

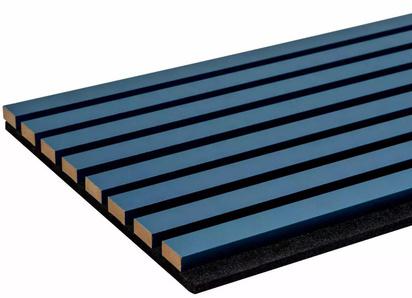

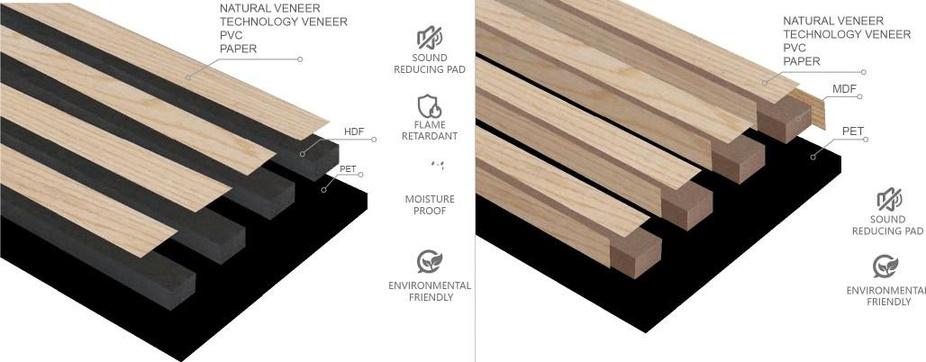

Each panel is built up in three layers: a decorative face of natural veneer, technical veneer, PVC film or melamine paper; an MDF slat core; and a polyester fibre acoustic backing board.
The MDF core is flame-retardant and moisture-proof, and the backing board carries the acoustic performance while providing a continuous, easily fixed substrate.

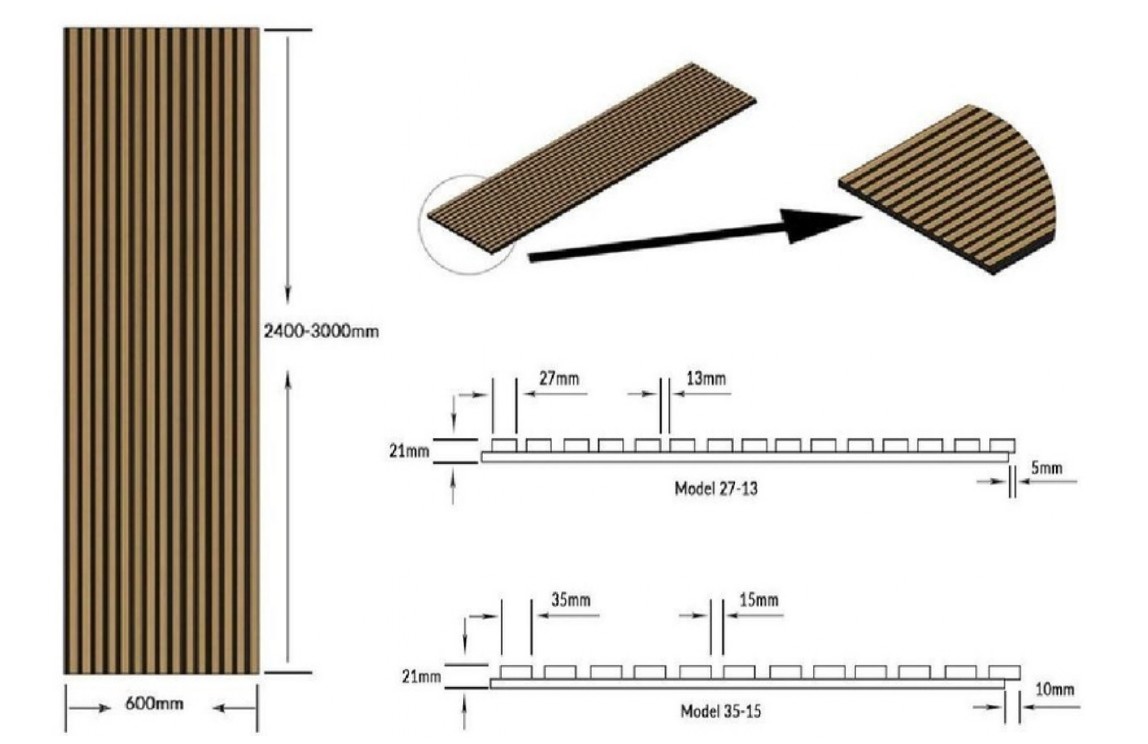

| Model 27-13 | 27 mm slat width · 13 mm gap · 21 mm total depth · 5 mm backing |
| Model 35-15 | 35 mm slat width · 15 mm gap · 21 mm total depth · 10 mm backing |
| Panel Length | 2400 – 3000 mm |
| Panel Width | 285 mm / 305 mm / 605 mm |
| Curved Application | Panels can be flexed to form curved wall and ceiling surfaces |

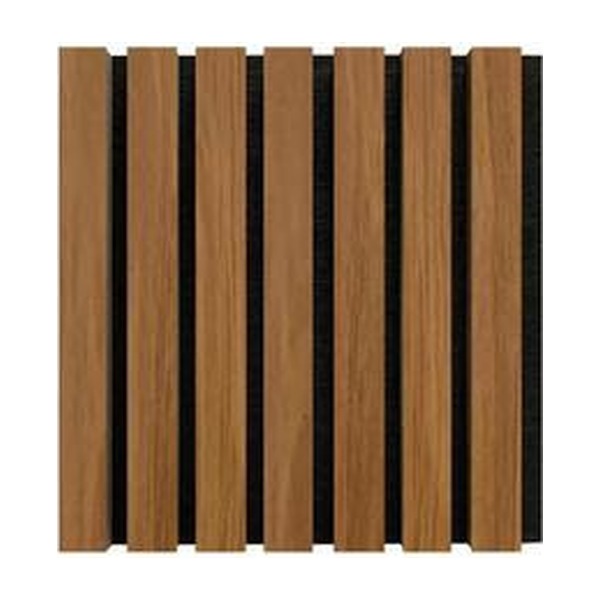

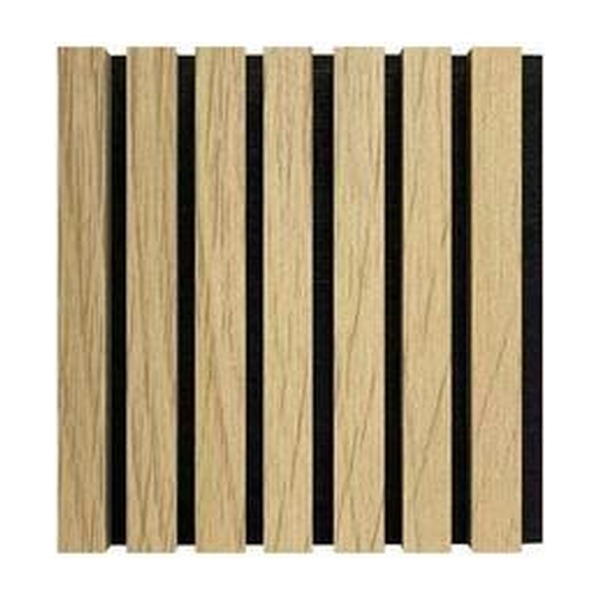

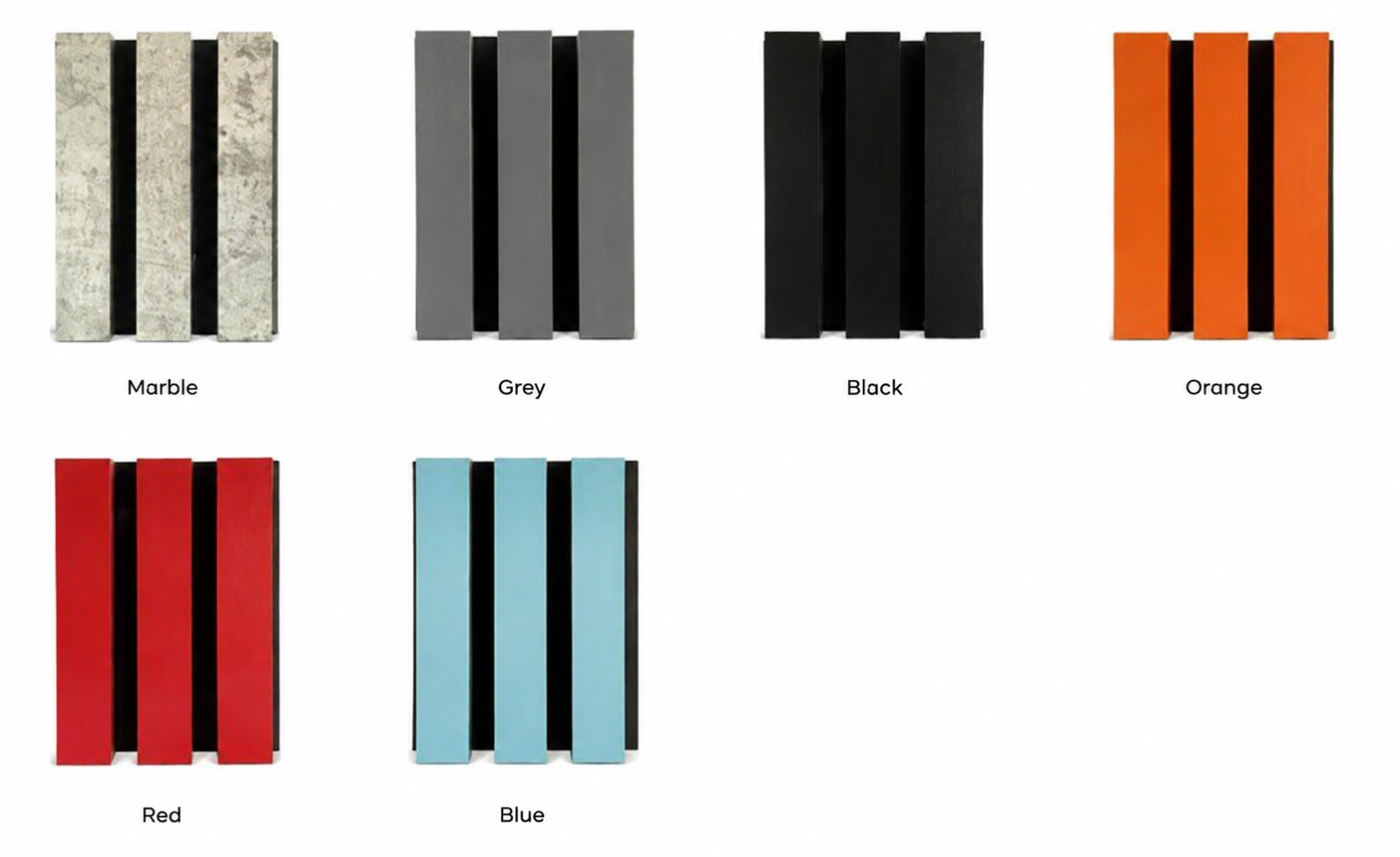

Eight standard finishes. Custom colours and bespoke veneers are available to order.
| Total Size | 21 × 605 × 2400 mm · 21 × 605 × 3000 mm · 21 × 285 × 2400 mm · 21 × 285 × 3000 mm |
| Weight | 10.8 kg / 13.6 kg / 5.1 kg / 6.3 kg |
| Number of MDF Slats | 15 / 7 pcs |
| Size of MDF Slat | 27 × 12 mm |
| Distance Between Slats | 13 mm |
| Total Size | 21 × 605 × 2400 mm · 21 × 605 × 3000 mm · 21 × 285 × 2400 mm · 21 × 285 × 3000 mm |
| Weight | 10.8 kg / 13.6 kg / 5.1 kg / 6.3 kg |
| Number of MDF Slats | 15 / 7 pcs |
| Size of MDF Slat | 27 × 12 mm |
| Distance Between Slats | 13 mm |
| Total Size | 21 × 605 × 2400 mm · 21 × 605 × 3000 mm · 21 × 285 × 2400 mm · 21 × 285 × 3000 mm |
| Weight | 10.8 kg / 13.6 kg / 5.1 kg / 6.3 kg |
| Number of MDF Slats | 15 / 7 pcs |
| Size of MDF Slat | 27 × 12 mm |
| Distance Between Slats | 13 mm |
| Total Size | 21 × 605 × 2400 mm · 21 × 605 × 3000 mm · 21 × 285 × 2400 mm · 21 × 285 × 3000 mm |
| Weight | 10.8 kg / 13.6 kg / 5.1 kg / 6.3 kg |
| Number of MDF Slats | 15 / 7 pcs |
| Size of MDF Slat | 27 × 12 mm |
| Distance Between Slats | 13 mm |
| Total Size | 21 × 605 × 2400 mm · 21 × 605 × 3000 mm · 21 × 285 × 2400 mm · 21 × 285 × 3000 mm |
| Weight | 10.8 kg / 13.6 kg / 5.1 kg / 6.3 kg |
| Number of MDF Slats | 15 / 7 pcs |
| Size of MDF Slat | 27 × 12 mm |
| Distance Between Slats | 13 mm |
| Total Size | 21 × 605 × 2400 mm · 21 × 605 × 3000 mm · 21 × 285 × 2400 mm · 21 × 285 × 3000 mm |
| Weight | 10.8 kg / 13.6 kg / 5.1 kg / 6.3 kg |
| Number of MDF Slats | 15 / 7 pcs |
| Size of MDF Slat | 27 × 12 mm |
| Distance Between Slats | 13 mm |
| Total Size | 21 × 605 × 2400 mm · 21 × 605 × 3000 mm · 21 × 285 × 2400 mm · 21 × 285 × 3000 mm |
| Weight | 10.8 kg / 13.6 kg / 5.1 kg / 6.3 kg |
| Number of MDF Slats | 15 / 7 pcs |
| Size of MDF Slat | 27 × 12 mm |
| Distance Between Slats | 13 mm |
At Ecowood Panels, we utilize medium-density fiberboard (MDF) as a core material in our acoustic fabric panels due to its exceptional properties. MDF is crafted from recycled wood pieces pressed together with adhesive under high temperature and pressure, resulting in a dense and sturdy board. This material is stronger than particle board, offers a veneer finish that mimics solid wood, and is lightweight compared to hardwood. Additionally, MDF contains chemicals that repel termites and resists warping in humid conditions, making it a durable, low-maintenance, and cost-effective choice for various applications.
Made of yellow pine wood with a specific E1 environmental class, suitable for interior decoration, safe and beautiful.
Environmental protection Class E0, almost non-formaldehyde, with 750KG/M3 high density, the blackest color in China
Bottom is black polyester fiber. It is a good acoustic and decorative material with characteristics of environmental friendly, heat insulation, mildew proof, easy cutting, easy removal
and simple installation etc.
Our wooden slat wall panel offers Class A sound absorption, will
absorp the sound waves and remove reverberation, creat a
quieter, more comfortable space for you
Wooden slats is made from recycled material, with FCS test
report, and the felt is made from recycled plastic bottles, with
GRS test report.
The interior acoustic panel will be safer with fire-retardant
function. Depending on the materials and finishes, we can
produce wood slat acoustic panels with a fire rating up to Class B,in accordance with European standard
We can produce the microperforated acoustic panels for many kinds of installation situation, for both wall and ceiling. In both cases soft acoustic cotton and certain cavity are required for improving the optimal absorption coefficient.
Installation of acoustic panels can be done with minimal construction skills, DIY.
