Micro perforated acoustic panels

About the Product

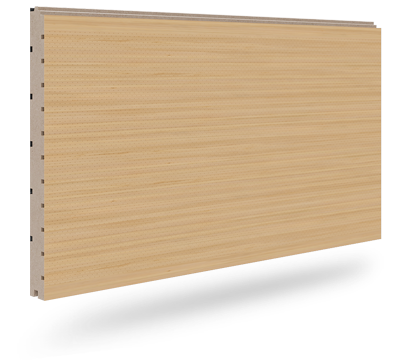

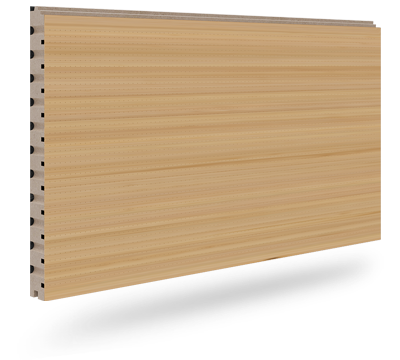

Micro perforated acoustic panel offer an invisible solution for the decoration, the surface of the panel is drilled with numerous tiny micro-perforations which can provide an excellent acoustical performance, mainly to trap the noise and reduce the reverberation time in the room. With 0.5mm micro perforation, people will not notice any hole on the decorative board from a certain distance, keeping the finish completed.

There are various finish choices and 3 types of standard perforated pattern, 2-2-0.5, 4-4-0.5, 8-8-0.5, according to the different types, the distance of the distribution of the holes will be different, each square meter can approximately have maximum 300,000 holes.

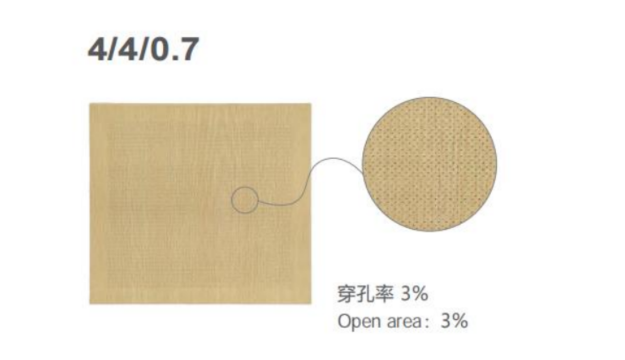

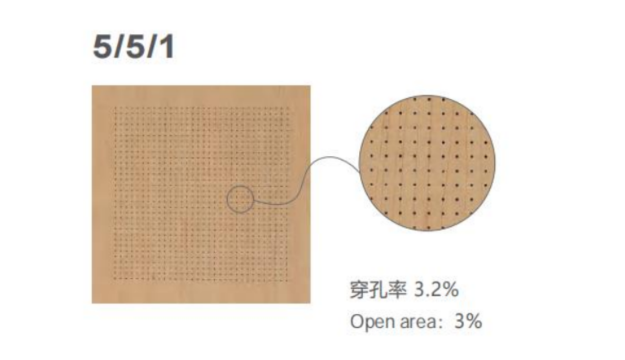

Perforation Pattern

At Echowood Panels, our perforation patterns are meticulously designed to enhance the acoustic performance and aesthetic appeal of our panels. Perforations play a crucial role in sound absorption, helping to reduce echo and noise while adding a distinctive visual element to the panels. We offer a variety of perforation patterns to suit different acoustic needs and design preferences.

New Patterns Available

MICRO 8X8X1 PR%1 DS 16.000

There are 16.000 holes with a diameter of Ø 1 mm on the front face of this panel. On the back surface, there are crosswise holes opened with a diameter of 5 Ø mm a intervals of 16mm x 16mm.
Perforation Ratio : %1
Frequency Type: It provides high acoustic absorption in low frequency sounds.

MICRO 4X8X1 PR%3 DS 32.000

There are 32.000 holes with a diameter of Ø 1 mm on the front face of this panel. On the back surface, there are crosswise holes opened with a diameter of 5 Ø mm a intervals of 16mm x 16mm.
Perforation Ratio : %3
Frequency Type : It provides high acoustic absorption in low frequency sounds.

MICRO 4X4X1 PR%5 DS 64.000

There are 64.000 holes with a diameter of Ø 1 mm on the front face of this panel. On the back surface, there are crosswise holes opened with a diameter of 5 Ø mm a intervals of 16mm x 16mm.
Perforation Ratio : %5
Frequency Type : It provides high acoustic absorption in low frequency sounds.

MICRO 4X4X1 PR %10 DS 128.000

There are 128.000 holes with a diameter of Ø 1 mm on the front face of this panel. On the back surface, there are crosswise holes opened with a diameter of 5 Ø mm a intervals of 16mm x 16mm.
Perforation Ratio: %10
Frequency Type: It provides high acoustic absorption in low frequency sounds.

Available Finishes

Micro perforated acoustic panels from Oakzone are available in three different finishes.
Download the color chart to check all the color options.

HPL

High Pressure Laminates (HPL) is a material that belongs to the high-tech group of high-pressure decorative laminates, compact laminates, and balance sheets, widely used as a surface finishes applied to different materials, such as MDF.

SPC/PVC

SPC/PVC is a rigid, high-density polymer overlay commonly used as a surface finish on acoustic panels. Smooth, moisture-resistant, and easy to maintain.

Veneer

Technical veneer is an economic solution to have a relative natural wood grain compare with melamine and HPL, it can solve the flaws from the natural veneer, such as color tone and scratch, but it can not be as natural as the real wood.

Core Materials

At Ecowood Panels, we utilize medium-density fiberboard (MDF) as a core material in our acoustic fabric panels due to its exceptional properties. MDF is crafted from recycled wood pieces pressed together with adhesive under high temperature and pressure, resulting in a dense and sturdy board. This material is stronger than particle board, offers a veneer finish that mimics solid wood, and is lightweight compared to hardwood. Additionally, MDF contains chemicals that repel termites and resists warping in humid conditions, making it a durable, low-maintenance, and cost-effective choice for various applications.

E2 MDF

Normal MDF without any special treatment, low cost for budget tight project.

E1 MDF

Eco-friendly MDF,
low formaldehyde emission,
density is higher.

E0 MDF

Imported MDF, super low formaldehyde emission, high density, cost is expensive.

B1 MDF

Fire retardant MDF, maximum fire rating can reach B1, weak against the humidity.

Black MDF

With both advantages of E1 and B1, high density and better against humidity.

Green MDF

Same as E1 MDF, but add agent to improve the ability against the humidity.

Advantages & Structure

Acoustic black fleece, SoundTex, fire retardant.
Fire retardant wooden frame.
Perforated back surface.
Edge banding matching the surface finish, can use PVC, wood veneer, painting or ABS.
According to the materials choices, fire rating can be up to Class A.

Installation Method

We can produce the microperforated acoustic panels for many kinds of installation situation, for both wall and ceiling. In both cases soft acoustic cotton and certain cavity are required for improving the optimal absorption coefficient.
