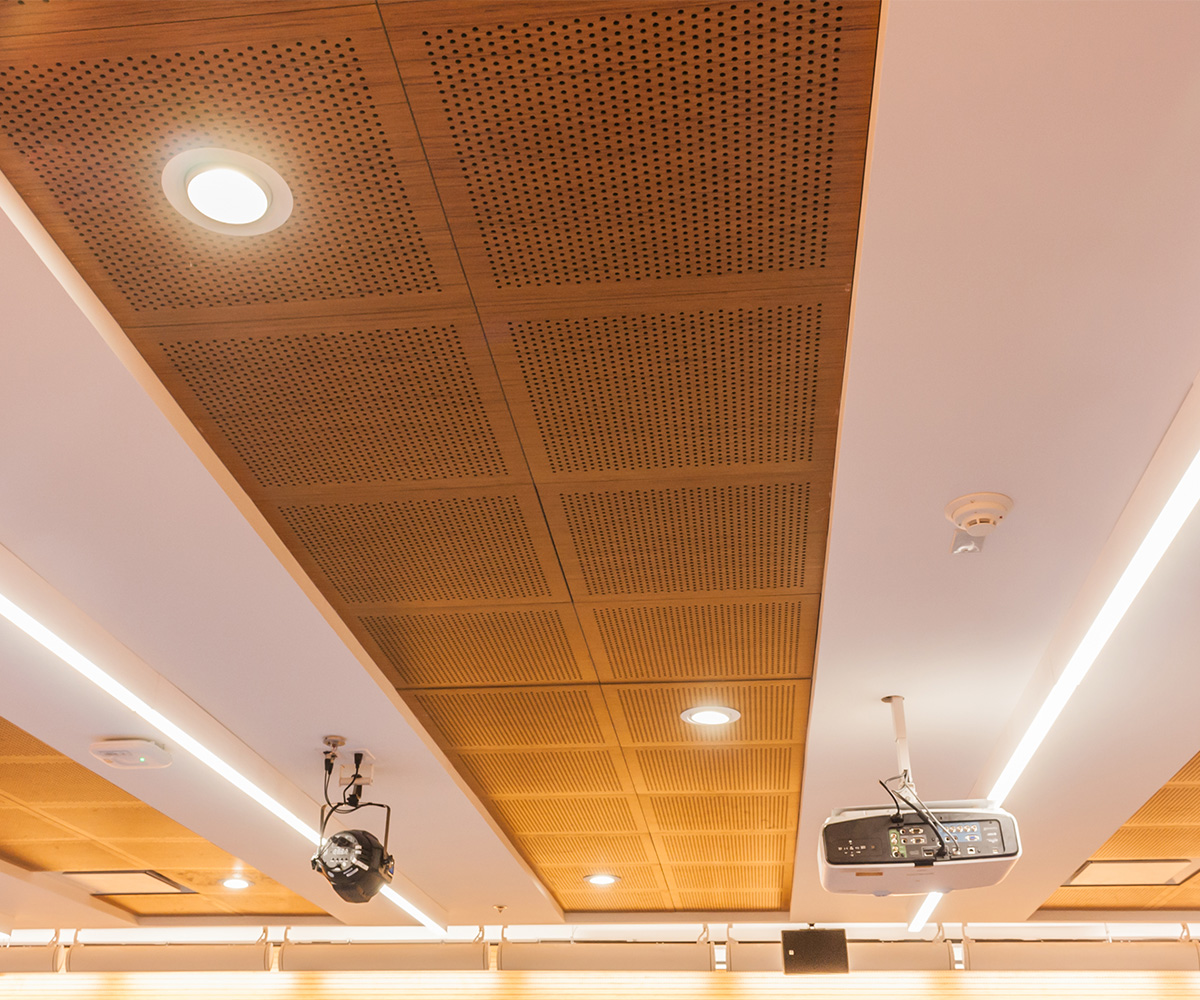

Micro Perforated Wooden Ceiling

perforated_wooden_ceiling_1

Timbertune Acoustic Panel

The Timbertune Acoustic Panel is a high-performance acoustic solution designed to enhance sound quality while offering aesthetic versatility. Suitable for both walls and ceilings, it combines the functionality of sound absorption with an elegant finish.

  • Brand Timbertune®
  • NRC Range High
  • Materials Wooden
Order Now
Download Datasheet

Perforation Pattern

At Echowood Panels, our perforation patterns are meticulously designed to enhance the acoustic performance and aesthetic appeal of our panels. Perforations play a crucial role in sound absorption, helping to reduce echo and noise while adding a distinctive visual element to the panels. We offer a variety of perforation patterns to suit different acoustic needs and design preferences.

New Patterns Available

Hole Pattern / Model Reference
4×4×0.7mm hole pattern
4×4×0.7mm
Open Area: 3%
The finest micro-perforation in the range, delivering the strongest peak absorption (up to 0.98 NRC at 315Hz) among all micro-perforated models — best for demanding mid-frequency control.
Download TDS — 4×4×0.7mm Get Quote — 4×4×0.7mm
Frequency (Hz) 10012516020025031540050063080010001250160020002500315040005000
Sound Absorption Coefficient 0.080.410.550.810.950.980.960.930.870.750.770.700.720.590.530.520.430.34
5×5×1mm hole pattern
5×5×1mm
Open Area: 3%
A balanced micro-perforation pattern with strong absorption centred around 250–500Hz, suited to general mid-frequency noise control.
Download TDS — 5×5×1mm Get Quote — 5×5×1mm
Frequency (Hz) 10012516020025031540050063080010001250160020002500315040005000
Sound Absorption Coefficient 0.300.420.550.750.820.800.920.900.800.610.520.500.450.350.300.260.240.24
8×8×1mm (2%) hole pattern
8×8×1mm (2%)
Open Area: 2%
Widest hole spacing in the micro-perforated range, giving the most subtle surface texture with focused low-to-mid frequency absorption.
Download TDS — 8×8×1mm (2%) Get Quote — 8×8×1mm (2%)
Frequency (Hz) 10012516020025031540050063080010001250160020002500315040005000
Sound Absorption Coefficient 0.300.400.500.800.780.850.820.720.680.610.570.400.370.270.200.180.170.16
8×8×1mm (1%) hole pattern
8×8×1mm (1%)
Open Area: 1%
16,000 holes at Ø1mm on the front face. Back surface has crosswise holes at Ø5mm, spaced 16mm × 16mm apart. Provides high acoustic absorption in low frequency sounds.
Download TDS — 8×8×1mm (1%) Get Quote — 8×8×1mm (1%)
4×8×1mm hole pattern
4×8×1mm
Open Area: 3%
32,000 holes at Ø1mm on the front face. Back surface has crosswise holes at Ø5mm, spaced 16mm × 16mm apart. Provides high acoustic absorption in low frequency sounds.
Download TDS — 4×8×1mm Get Quote — 4×8×1mm
4×4×1mm hole pattern
4×4×1mm
Open Area: 5%
64,000 holes at Ø1mm on the front face. Back surface has crosswise holes at Ø5mm, spaced 16mm × 16mm apart. Provides high acoustic absorption in low frequency sounds.
Download TDS — 4×4×1mm Get Quote — 4×4×1mm
V-4×4×1mm hole pattern
V-4×4×1mm
Open Area: 10%
128,000 holes at Ø1mm on the front face. Back surface has crosswise holes at Ø5mm, spaced 16mm × 16mm apart. Provides high acoustic absorption in low frequency sounds.
Download TDS — V-4×4×1mm Get Quote — V-4×4×1mm

Available Finishes

Micro perforated acoustic panels from Oakzone are available in three different finishes.
Download the color chart to check all the color options.

HPL

High Pressure Laminates (HPL) is a material that belongs to the high-tech group of high-pressure decorative laminates, compact laminates, and balance sheets, widely used as a surface finishes applied to different materials, such as MDF.

SPC/PVC

SPC/PVC is a rigid, high-density polymer overlay commonly used as a surface finish on acoustic panels. Smooth, moisture-resistant, and easy to maintain.

Veneer

Technical veneer is an economic solution to have a relative natural wood grain compare with melamine and HPL, it can solve the flaws from the natural veneer, such as color tone and scratch, but it can not be as natural as the real wood.

Core Materials

At Ecowood Panels, we utilize medium-density fiberboard (MDF) as a core material in our acoustic fabric panels due to its exceptional properties. MDF is crafted from recycled wood pieces pressed together with adhesive under high temperature and pressure, resulting in a dense and sturdy board. This material is stronger than particle board, offers a veneer finish that mimics solid wood, and is lightweight compared to hardwood. Additionally, MDF contains chemicals that repel termites and resists warping in humid conditions, making it a durable, low-maintenance, and cost-effective choice for various applications.

E2 MDF

Normal MDF without any special treatment, low cost for budget tight project.

E1 MDF

Eco-friendly MDF,
  low formaldehyde emission,
density is higher.

E0 MDF

Imported MDF, super low formaldehyde emission, high density, cost is expensive.

B1 MDF

Fire retardant MDF, maximum fire rating can reach B1, weak against the humidity.

Black MDF

With both advantages of E1 and B1, high density and better against humidity.

Green MDF

Same as E1 MDF, but add agent to improve the ability against the humidity.

Advantages & Structure

  1. Acoustic black fleece, SoundTex, fire retardant.
  2. Fire retardant wooden frame.
  3. Perforated back surface.
  4. Edge banding matching the surface finish, can use PVC, wood veneer, painting or ABS.
  5. According to the materials choices, fire rating can be up to Class A.
This is a representational image of the full structure.
All parts are sold seperately.

Installation Method

We can produce the microperforated acoustic panels for many kinds of installation situation, for both wall and ceiling. In both cases soft acoustic cotton and certain cavity are required for improving the optimal absorption coefficient.
