Afico QLB

Acoustic Insulation Board

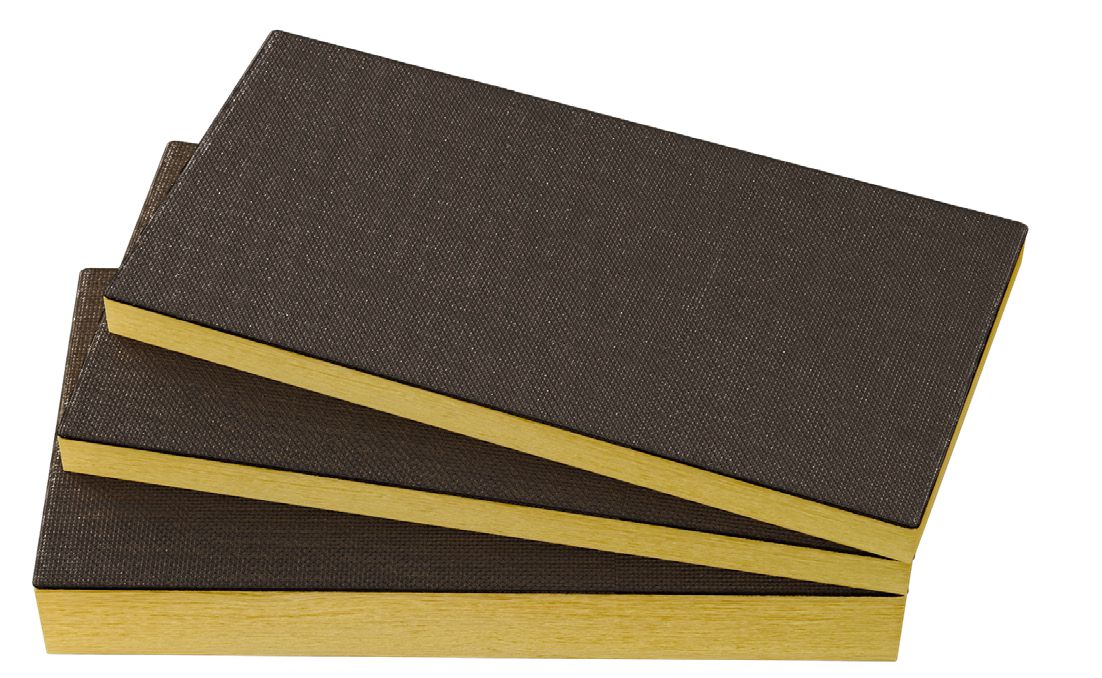

Quiet Liner Board (QLB)

AFICO Quiet Liner Board is a rigid glass fibre panel faced with black woven glass fabric, engineered for HVAC duct lining, plant room enclosures and acoustic partitions. It absorbs airborne noise and controls heat transfer simultaneously, with a durable faced surface that resists erosion from airflow.

  • Density — 48 kg/m³, rigid board
  • Thickness — 25mm
  • Facing — Black woven glass fabric (WGF), one side
  • Sheet Size — 1200 × 1000mm
  • Applications — HVAC duct lining · acoustic enclosures · thermal control
Get a quote
Download Catalogue
afico2
afico

People & Planet Always First

AFICO’s products are all energy saving, environmentally friendly, use even more recycled materials and contribute to the fight against global warming.

Product Description

The AFICO Quiet Liner Board is a resilient, semi-rigid fibre insulation board engineered from fine, uniformly textured inorganic glass fibres bonded with a fire-retardant thermosetting resin. Free from coarse fibres and shot, it delivers consistent acoustic and thermal performance across its full thickness. The board is faced with a strong, dimensionally stable Black Woven Glass Fibre Fabric (WGF) that faces the airstream, resisting airflow erosion while maintaining sound absorption. It is chemically inert, mould-resistant, and fully compliant with international fire, thermal, and acoustic standards — making it a dependable choice for commercial, institutional, and industrial HVAC applications across the UAE and the wider GCC.

Key Features
🔈
Superior Sound Absorption
NRC up to 0.90 at 25mm — effective across mid and high frequencies.
🔥
Non-Combustible
Class '0' fire rating (BS 476). WGF facing: Flame Spread ≤ 25, Smoke ≤ 50.
🌡
High-Temp Rated
Operates up to 232°C (450°F). Suitable for high-velocity air handling systems.
🌫
Airflow-Rated Facing
WGF Black facing designed for duct interiors at up to 20 m/s air velocity.
✅
Chemically Inert
Will not corrode steel, aluminium, or stainless steel. pH 9. Mould-free.
🌿
SCS Recycled Certified
Environmentally responsible — energy saving, recyclable, and non-toxic.
Product Specifications
Parameter Value
ProductAFICO Quiet Liner Board (QLB)
Density48 kg/m³  QLB 480
FacingBlack Woven Glass Fibre Fabric (WGF)
Thickness25 mm (1 inch)
Sheet Size1,200 × 1,000 mm
NRC (at 25mm)0.90
R Value (25mm)0.76 m²·°K/W  (4.28 BTU·in/hr·ft²·°F)
K Value @ 24°C0.032 W/m·°K
Max Operating Temp232°C (450°F)
Fire RatingClass '0' — Non-combustible (BS 476 Parts 4, 5, 6, 7)
Flame Spread / Smoke≤ 25 / ≤ 50 (ASTM E84, UL723)
AlkalinitypH 9 — chemically inert
Mould ResistanceDoes not support mould, fungi, or bacteria (ASTM C1338)
Lead Time2 days after payment confirmation
Payment Terms100% upfront (stock products)
Sound Absorption Coefficients — QLB 480 at 25mm (ASTM C423)
125 Hz
0.11
250 Hz
0.26
500 Hz
0.65
1000 Hz
0.84
2000 Hz
0.80
4000 Hz
0.57
NRC = 0.90  Â·  Reverberation Chamber Method  Â·  Source: AFICO datasheet
Typical Applications
HVAC duct lining & air handling plenums
Recording studios & acoustic enclosures
Generator rooms & mechanical plant rooms
Auditoriums, conference rooms & theatres
Curtain walls & interior wall/ceiling linings
Commercial, institutional & industrial buildings
Standards & Compliance
ASTM C612 ASTM C795 ASTM C1071 ASTM C518 ASTM C423 EN 13162 UL 723 — FHC 25/50 SASO GSO EN 13162 SCS Recycled Certified BS 476 — Class '0'
